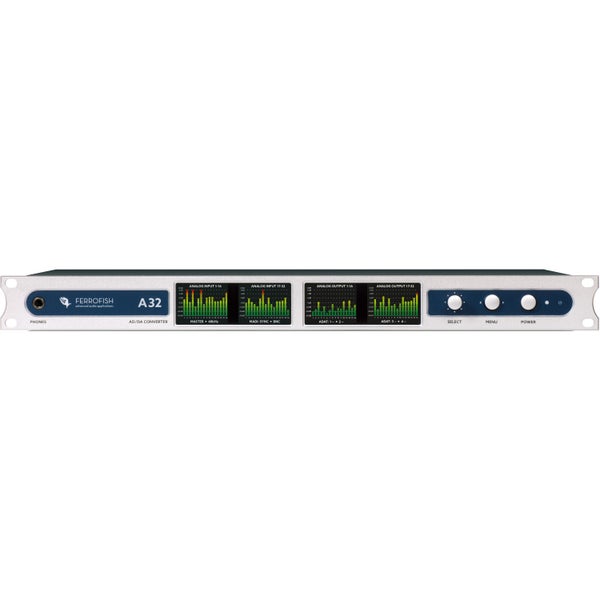

Ferrofish A32 32x32 AD/DA, MADI & ADAT Converter
Descrizione
The Ferrofish A32 32x32 AD/DA converter is the ultimate workhorse for your studio, live rig or OB bus and features 32x32 analogue I/O plus 32x32 ADAT I/O with S/PDIF switch, coaxial MADI I/O and more! Thanks to the MADI & ADAT ports, you always have the best possible connection at your disposal. The MADI connection opens up the possibility to transfer 64x64 audio channels across a distance of up to 2 km via a coax or optical cable while MIDI-over-MADI functionality does the same for controlling your gear without the need for an extra external connection. This means that since it's equipped with ADAT I/O and 32 analogue inputs and outputs, the Ferrofish A32 lets you transfer all that data via a single connection. Naturally, the high-performance SHARC DSP packs enough processing power to take care of all 258 audio channels.
Specifiche
Caratteristiche
- Formato rack 19'' sì, 1 U
- Canali analogici in ingresso 25 - 32
- Canali analogici in uscita 25 - 32
- Collegamento con computer USB
- Uscita cuffie sì
- Frequenza di campionamento massima 192 kHz
- I/O MIDI (connettori DIN) MIDI in, MIDI out
Peso e dimensioni imballaggio incluso
- Peso (imballaggio incluso) 5,2 kg
- Dimensioni (imballaggio incluso) 63,0 x 38,5 x 10,0 cm
Specifiche
- 32x32 AD/DA, MADI & ADAT Converter
- sample rate: 32kHz, 192kHz
- 32 x 32 analogue I/O channels
- 64 x 64 MADI I/O channels (optical or coaxial)
- 32 x 32 ADAT I/O channel (8x TOSLINK Optical)
- stereo S/PDIF optical I/O with sample rate conversion
- word clock I/O (BNC)
- headphone output: integrated monitoring matrix for mono, stereo and sub-mix signals
- MIDI I/O & MIDI-over-MADI
- thermally compensated oscillator with patented active jitter reduction circuit
- preset management
- Analog Devices SHARC DSP processor
- 4x TFT displays
- one-key-control operating system
- multi-lingual assistance system
- dimensions: 44.6 x 24.6 x 4.4 cm
