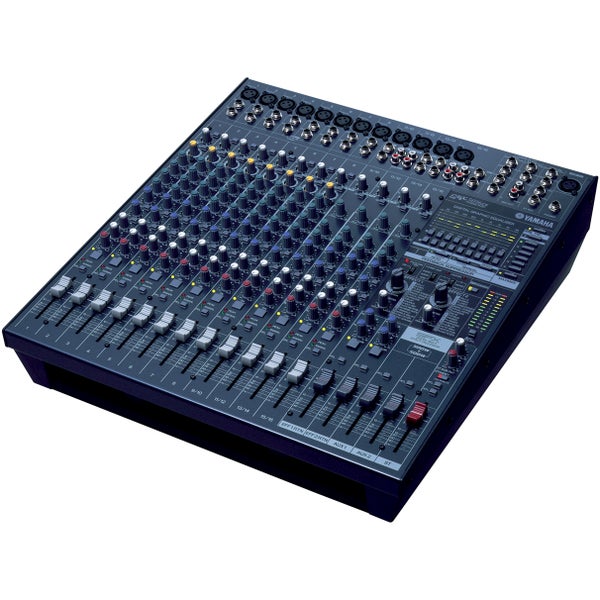

Yamaha EMX5016CF BS Mixing Desk with Amplifier
Descrizione
Equipped with 12 channels and a 500-Watt built-in stereo amplifier, the Yamaha EMX5016CF BS mixing desk is a great choice for bands. So that this powered mixer can be hooked up to your passive speakers, microphones, instruments and other gear, Yamaha have fitted a wide variety of both balanced and unbalanced inputs and outputs, including two footswitch inputs and 12V lamp input.
The EMX5016CF: Advanced Mixer with Built-In Amplifier
Since the EMX5016CF features individual compression per mono channel, high-pass filters, and a 3-band EQ on each channel, the audio can be tweaked in minute detail while the volume can be kept consistent or limited if needed. What's more, the Master section is home to a highly advanced digital 9-band graphic equalizer for further sonic optimisation, and Yamaha have a integrated an extensive effects section that can be used to enhance the sound with two effects per channel. Meanwhile, the on-board feedback suppressor actively counters those unwanted screeching sounds, while all of the microphone inputs offer +48V phantom power so you can freely plug in your condenser microphones.
Specifiche
Caratteristiche
- 19'' rackmount 19'' (disponibile separatamente
- Numero di ausiliarie 3 - 4
- Numero di ingressi microfono 9 - 12
- Numero di canali mono 8
- Numero di canali stereo 4
- Numero di submaster nessuno
- Compressore sugli ingressi sì, solo sugli ingressi mono
- Equalizzatore a 3 bande, parametrico
- Protezioni integrate da sovraccarico, termica, da cortocircuito, onde quadre / voltaggio DC, peak limiter, indicatore di clip
- Effetti integrati sì
- Panning per canale sì
- Collocazione di ingressi e uscite lato superiore e posteriore
- Potenza RMS (4 ohm) 2x 500 watt
- Potenza RMS (8 ohm) 2x 315 watt
- Type of mixer inputs microphone input (XLR), balanced line input (TRS jack), unbalanced line input (TS jack), unbalanced line input (RCA)
- Type of mixer outputs unbalanced line output (TS jack), lockable speaker output
- Alimentazione del mixer cavo di corrente
- Controllo volume fader + manopola
Peso e dimensioni imballaggio incluso
- Peso (imballaggio incluso) 14,5 kg
- Dimensioni (imballaggio incluso) 80,0 x 53,0 x 28,0 cm
Specifiche
- Yamaha EMX5016CF mixer
- Mixing Desk with Amplifier
- mixer:
- channels: 8 Mono + 4 Stereo + 2 Return
- AUX: 4 (2x Effect Send)
- Main: stereo
- input functions: CH1-8: HPF, Compressor, 3-band mid-sweep PEQ Insert I/O; CH9-16: HPF, 3 band PEQ
- onboard processors: 2x SPX, 2x Digital 9-band GEQ, Feedback suppressor, Frequency response correction, Maximizer, YSProcessing
- connections:
- mic inputs: 12
- phantom power: +48V DC, ON/OFF
- line inputs: 4x stereo
- control: 2x footswitch, lamp
- on-board amplifiers:
- max. output power @ 4 Ohm: 500W per channel
- max. output power @ 8 Ohm: 320W per channel
- output selection: 500W, 200W, 75W; L/R, AUX1/MONO, AUX1/AUX2
- THD: < 0.3%
- frequency response: 20 Hz - 20 Hz
- hum & noise:
- equivalent input : -128 dBu
- residual output: -68 dBu (speaker out); -95 dBu (line out)
- protection:
- load: Power switch on/off mute, DC-fault (power supply shutdown/manual reset), Clip limiter (THD 1%; compression)
- amplifier: Thermal (heatsink temp 90 °C; output mute/auto reset), V limiter (RL 2 Ohms)
- power supply: Thermal (heatsink temp 100°C; power supply shutdown/manual reset)
- power consumption: 500W
- dimensions (W x D x H): 44.4 x 49.3 x 15.5cm
- weight: 11 kg
- included:
- user manual
- power cable
