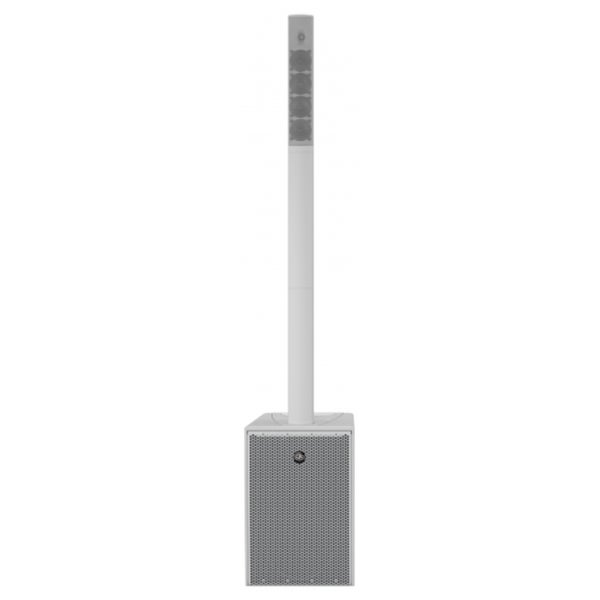

DAS Audio ALTEA-DUO-20A W Active Column Speaker System
Descrizione
The DAS Audio ALTEA duo-20A column speaker system has a three-way design, making it versatile enough to support parties, events, conferences and live music venues. The professional performance of a two-channel Class-D amplifier and a peak power of 2,000 Watts has been combined with convenient portability and a universal power supply so this system could even serve as a touring rig. Meanwhile, the options supplied by the on board DSP and DAScontrol technology are easily navigated and intuitively controlled via the rear-mounted LCD-display and rotary control knob, so you can scroll through the pre-tuned stack of acoustic modes and settings to find exactly what you need. Link the ALTEA duo-20A up to the DASlink GM app to gain access to wireless audio streaming and remote control.
High Level Sound
Thanks to an advanced driver configuration, this complete column system delivers high-quality audio. Two 10 inch 10MG speakers take care of the low frequencies with superior power and ultra-low distortion, while four 3 inch 3PM neodymium drivers plus a 1 inch neodymium compression driver take care of the mid and high frequency reproduction with effortless clarity. The 100º x 50º horn guarantees uniformly controlled horizontal audio dispersion across the whole of the higher end of the frequency spectrum, maximising the definition.
Lightweight Designed & Quick Setup
The durable injection-moulded ABS column is simply mounted on top of the wooden subwoofer housing, completing an ultralight and elegant build that still remains solid and stable on stage. Everything is quickly assembled, set up, and connected up, kitting out any venue with powerful and professional performance, superior sound and maximum ease of use.
Specifiche
Caratteristiche
- Sustainable product not specified
Peso e dimensioni imballaggio incluso
- Peso (imballaggio incluso) 39,0 kg
- Dimensioni (imballaggio incluso) 72,0 x 69,5 x 50,5 cm
Specifiche
- column speaker system
- performance:
- frequency range: (-10 dB): 37 Hz - 20 kHz
- horizontal spread (-6 dB): 100º
- vertical spread: 50º
- max. peak SPL at 1m: 127 dB
- electronics and connections:
- nominal amplifier power (continuous): 1,000W
- nominal amplifier power (peak): 2,000W
- nominal amplifier power LF (continuous): 500W
- nominal amplifier power LF (peak): 1000W
- nominal amplifier power HF (continuous): 500W
- nominal amplifier power HF (peak): 1000W
- input type: balanced
- input impedance: 20 kOhms
- input sensitivity: 1.95V (+8 dBu)
- audio signal inputs:
- 1x 1/4 TRS HI-Z instrument
- 1x Wireless Stereo Bluetooth
- 2x XLR/TRS jack combi line/microphone
- aux. output: 1x RCA + 3.5mm stereo mini-jack
- audio signal loop port: x1 M-XLR
- controls: DASlink™, DAScontrol™
- power consumption: 230V/11 V: 1.5A/3.0A
- housing
- housing construction: polypropylene and birch plywood
- finish: textured
- colour: white
- components
- LF-driver: 10MG
- MF-driver: 3PN
- HF driver: M-27N
- dimensions: 2000 x 445 x 360mm
- weight: 31 kg
- power cable included
